ELECTRONICS
LOAD

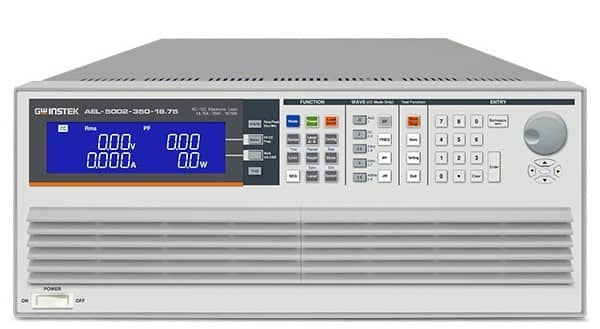

FROM GW INSTEK
Features:
- CC, Linear CC, CR, CV, CP and AC Rectifier Load Mode
- Frequency Range : DC, 40~440Hz
- Turbo Mode for 2 Times the Current and Power of Electronic Load within 1 Second
FROM GW INSTEK
Features:
- Sequence function to do high Efficient load simulations
- Flexible configuration with mainframes and plug-in modules
- Multiple independent load inputs up to 8 channels in a mainframe
- Parallel connection of inputs for increased load capacity
- Parallel connection of inputs for static and dynamic tests
- OPP/OCP/OVP/OTP protections
- External channel control/monitoring via an analog control connector
- Multi-Interface USB Device / Host, RS-232C, and GPIB /LAN (Optional)
FROM GW INSTEK
Features:
- 5-digit digital voltage, current and power meter
- Simultaneous display of voltage, current, and watts
- Short-circuit time can be set during short-circuit test
- Automatic test function of overcurrent protection/overpower protection
- The battery discharge test function can set the discharge stop voltage (Vbatt), discharge capacity (AH, WH) and stop discharge time.
- Surge test can simulate boot overshoot current and transient current from hot plugging.
- Constant current, constant resistance, constant voltage, constant power and Dynamic mode
- Overvoltage, overcurrent, over power, over temperature protection and reverse polarity detection
- Voltage polarity display can be set to positive value (“+”) or negative value (“-“)
- Communications interface: RS232, USB
FROM GW INSTEK
Features:
- 4 basic functions: CC, CV, CR, CP
- 9 basic operation modes: CCL, CCH, CVL, CVH, CRL, CRM, CRH, CPV, CPC
- 24-bit A/D converter and 16-bit D/A converter, 40kHz D/A conversion speed
- Hardware circuit for CR function, faster transient response and higher CR accuracy
- High speed transient test function, max. test frequency 2kHz
- 4.3-inch backlit Segment LCD display
- Auto ON/OFF function
- List Mode function, step 10ms-99999s, free to set numbers of cycles and to be linked to other lists
- Auxiliary functions: short circuit test, battery discharge capacity test
- Save & recall function for frequently used setups
