Ahl-Alkawther Company

FUNCTION

GENERATOR

FROM GW INSTEK

Features:

  • 1uHz to 20 or 30MHz, 16-bit resolution with 1 mVpp to 10 Vpp amplitude. 1 or 2 channel (s)
  • 250 MSa/s sampling rate for higher time resolution arbitrary waveforms
  • 8M Points/channel standard waveform memory
  • Input/output signal ground independent of housing and signal ground between channels also insulated.
  • Synchronized phase operates up to 6 units and 12 channels
  • Pulse waveform parameters can be set independently for more precise timing
  • Harmonic signal generator
  • Dual channel models support SUM modulation, coupling, tracking, and phase functions
  • Built-in AM/FM/PM/FSK/PWM/SUM modulation, sweep and burst functions
  • Provide USB/LAN/GPIB (optional) instrument control interface
  • IQ baseband waveform output function for AFG-3032/3022
  •

FROM OWON

Features:

  •  Max 60MHz frequency output,300MSa/s Sample rate

  • 14 bits Vertical Resolution,100K Arb waveform length

  • Comprehensive waveform output : 5 basic waveforms,and 150 built-in arbitrary waveforms

  • Comprehensive modulation functions : AM、FM、PM、PWM、
       FSK、3FSK、4FSK、    PSK、ASK、BPSK、OSK、DSBAM、QPSK、
       SUM、sweep、Burst

  • SCPI, and LabVIEW supported

  • 3.6 inch (480 × 272 pixels) LCD

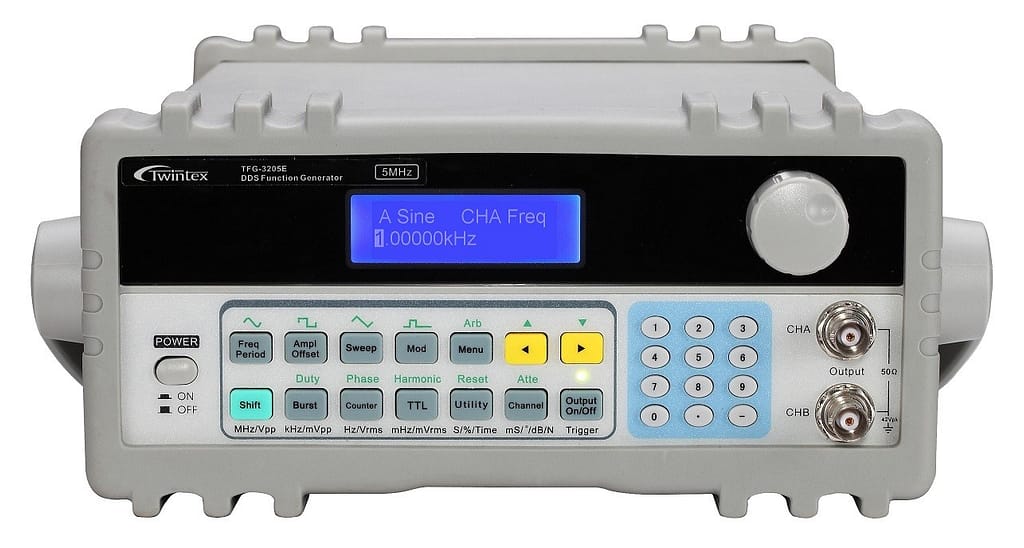

FROM Twintex

Features:

  • Max. output frequency 5MHz/10MHz/15MHz/20MHz

  • 2 output channels

  • Direct Digital Synthesis technology (DDS)

  • Sampling rate 100MSa/s, vertical resolution 8 bits, waveform length 1024 points

  • Min. 1mV (50Ω) waveform output with good stability

  • 32 built-in waveforms

  • 40 sets panel setting save & recall

  • Modulations: FM, FSK, ASK, PSK

  • Frequency sweep, amplitude sweep, burst and TTL output functions

  • Over voltage protection, over current protection, short circuit protection, reverse voltage protection

  • Standard parts: 200MHz frequency counter

  • Optional parts: RS-232 interface, power amplifier

FROM Twintex

Features:

  • Frequency range 1μHz~25MHz/40MHz/60MHz

  • 2 independent output channels at same frequency range for main waveforms

  • 4.5-inch TFT LCD display

  • Min. output amplitude 1mVpp (50Ω), total distortion 0.2%

  • Sampling rate 150MSa/s, vertical resolution 14 bits, waveform length 16k points

  • 6 standard waveforms, 50 built-in waveformsand 12 user-defined arbitrary waveforms

  • 10 sets save & recall for operating parameters

  • Modulations: AM, DSSC AM, FM, PM, ASK, FSK, BPSK

  • Synchronous output, external modulation input, trigger input, external reference input and count input

  • Linearity/Logarithmic sweep signal and Burst signal

  • Channel coupling, parameter (frequency, amplitude, offset, phase) coupling, point frequency replication tracking

  • Strong arbitrary waveform building software, support SCPI commands

  • Over voltage, over current, short circuit and reverse voltage protections

  • Standard interface: RS232, USB device, USB Host

  • 250MHz external frequency counter

  • Optional power amplifier
