LCR
METER
FROM GW INSTEK
Features:
- 20,000/2,000 Counts Dual Display
- Test Frequency : 100/120Hz/1/10/100kHz
- Auto LCR Mode for DUT Measurements
- 0.2% Basic Accuracy
- Measurement Parameters : L,C,R,D,Q,ESR,θ,DCR
- Parallel/Series Testing Mode
- Sorting Mode for Quality Control
- 2Wire or 5Wire Measurement Available
- Data Hold and Zero Mode Supported
- Max/Min
- Auto Range, Auto Backlit
FROM GW INSTEK
Features:
- 3.5” color LCD
- 5 models (10Hz~2kHz/20kHz/100kHz/200kHz/300kHz)
- Consecutive test frequency
- Basic accuracy : 0.05%
- Measuring speed up to 25ms (max.)
- Full frequency range or spot OPEN/SHORT
- 16 major/secondary parameter measurement combinations and two additional monitoring parameters(maximum four different parameters can be shown simultaneously)
- DCR measurement and internal D.C. bias voltage (±2.5V)
- PASS/FAIL judgment
- Auto Level Control (ALC) function
- BIN function provides 9BIN and 1AUX, totally 10 BIN
- 10 steps listed tests to select different frequency, voltage and current criteria
- Standard interface : RS-232C, Handler and USB Host / Device
- Compact size, ideal for automatic equipment (2U,1/2 RACK)

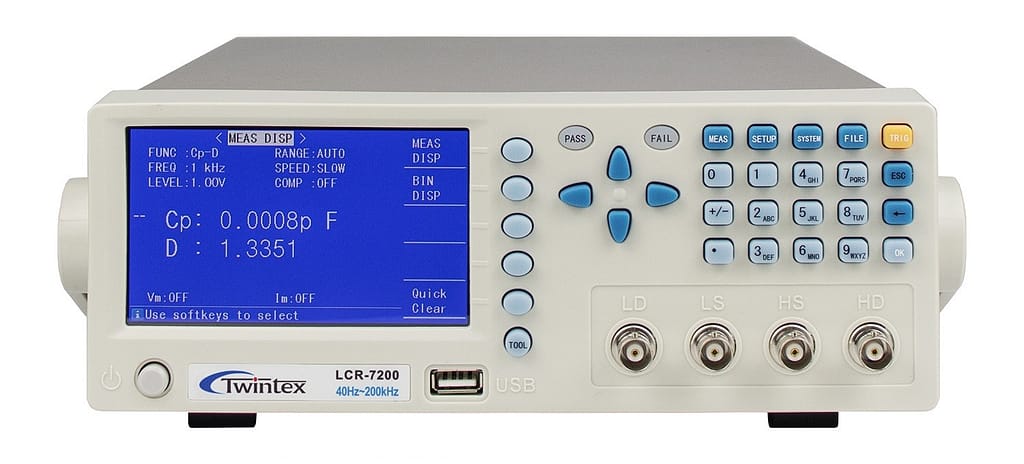

FROM Twintex
Features:
32-bit core processor
5-digit 4.3-inch TFT LCD display
4 signal source output impedance: 30Ω, 100Ω, 10/100, /10CC
List mode function, 10 steps
100 sets memories for internal storage/save
500 memories for U disk storage/save, supports FAT16 and FAT32 files
Save the last parameter settings before power off
Standard interface: RS-232, HANDLER, USB HOST
FROM GW INSTEK
Features:
- Wide Test Frequency：
- — LCR-8200A:DC, 10Hz~50/30/20/10/5 MHz
- — LCR-8200:DC, 10Hz~30/20/10/5/1 MHz
- 7″ LCD color Display
- 0.08% Basic Accuracy
- Displaying Four Measurement Results Simultaneously From 17 Selectable Measurement Parameters Freely
- 15 Steps List Measurement
- Two Curves Sweep Mode
- Equivalent Circuit Model Analysis (LCR-8200A only)
- Internal DC Bias Voltage ±12V
- USB Storage Available
